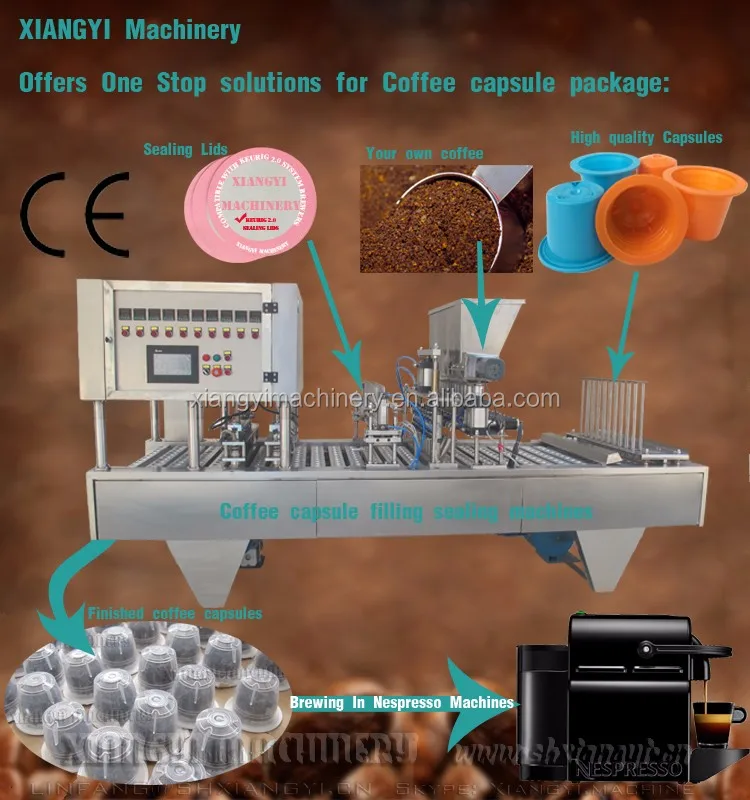

High quality best capsule coffee machine use for filling and sealing k cup

FOB Reference Price:Get Latest Price
US $2,000-35,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:

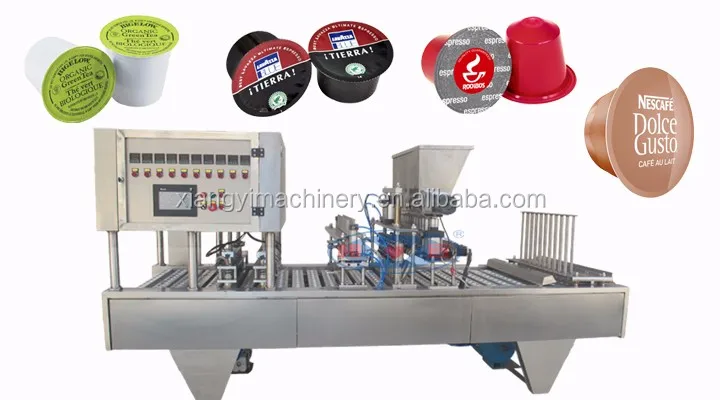

coffee capsule machine, use for K cup,Nesspresso,Lavazza
Packaging Type:
Capsule, coffee capsule machine
Packaging Material:
Paper, coffee capsule machine
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220V/380V
Power:
3KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xiangyi Machinery
Model Number:
XBG60
Dimension(L*W*H):
2200X2100X2200MM
Weight:
600kg
Certification:
CE
Name:
coffee capsule machine
Material:
Stainless Steel 304
Warranty:
1year
Machine name:
coffee capsule machine
Types:
XBG60
packing speed:
900-16000 cups per hour
Function:
cup filling and sealing machine
Capacity:
customized
Product name:
coffee capsule machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
25 Set/Sets per Month Coffee Capsule Filling Machine
Packaging & Delivery
Packaging Details

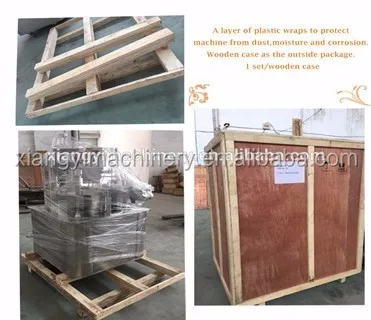

A layer of plastic wraps to protect Coffee Capsule Filling Machine from dust,moisture and corrosion. Wooden case as the outside package. 1 set/wooden case for Automatic Coffee Capsule Filling machine/coffee capsule filling sealing machine
Port
Shanghai
Lead Time :
Shipped in 25 days after payment
Product Description

Product Application-High quality best capsule coffee machine use for filling and sealing k cup

This New Condition and Manual Control Mode Manual Coffee Capsule Filling Machine is suitable for the production of various kinds of products such as coffee powder,herb tea powder, pneumatic control components, intelligent digital display temperature control system, sealed with high strength, good sealing,low failure rate

     Model
     Voltage
  Output
  Dimension
    Weight
XBG60-4K

380V/50HZ
3 phase-4line
can be customized
1000-1500P/H
3000*700*1800
650kg
XBG60-6K
2000-3000P/H
3000*750*1800
750kg
XBG60-8K
3000-4000P/H
3300*850*1800
800kg
XBG60-16K
6000-8000P/H
3500*850*1800
950kg

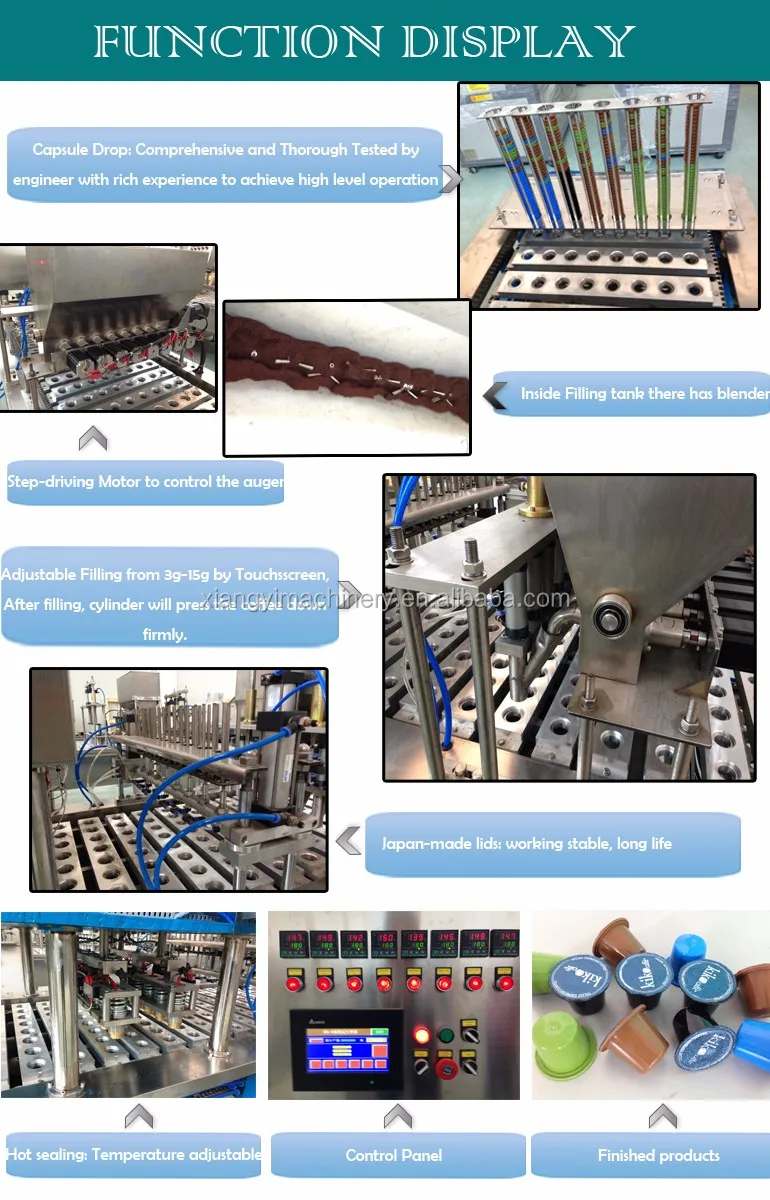

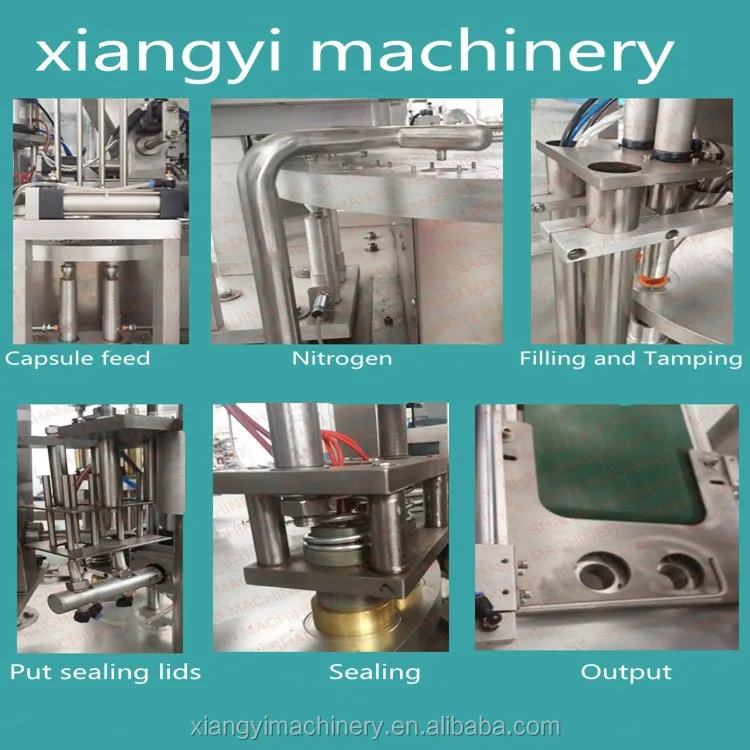

Standard Function



1.Cup falling

Pneumatic cylinder control
To suck the capsules down
Cylinder brand: AIRTAC (Taiwan brand)

2. No capsules No filling

Sensors to check capsules. If no capsules. Machine will not fill. Sensors are from AUTONICS from South Korea

3. Nitrogen flushing

To flush nitrogen inside capsules before fill.
Standard inlet connect with Nitrogen generator(customer equipped)

4. Filling coffee

Filling tank:10-20kgs around

filling outlets
Ration type: Auger (high accuracy)
The filling volume can be adjusted from 4 grams to 15 grams.

5. Put precut lids

Load the foils by sucker who controlled by a rotate cylinder and 2 linear cylinders

6. Sealing

Sealing head are made of aluminum, with the help of heaters.
Sealing temperature can be adjusted between 0°-400°

7. Outputting

Pneumatic output: cups are being output by pneumatic hands. Equipped 50cm conveyo

Optional Function



1. Glass covers(doors)

Use strong organic glass to protect products from dust.

Title goes here.

To stop machines when open the glass doors. To protect users' safety.

3. Air purify device

Can purify the air in the glass covers, so the dust can be cleaned up!

4. Coffee capsule bagging machines

Can pack 1/10/20 pcs capsules in one bag with nitrogen to keep fresh.

5. Nitrogen generator

If you don't have it or cannot buy Nitrogen locally, can use our nitrogen generator, which can offer enough Nitrogen to keep coffee fresh

6. Preference brands

If you have any preference brands of the electrical and pneumatic parts, you can let us know.

7. Auger feeder

To load coffee automatically to the tank in the filling machine

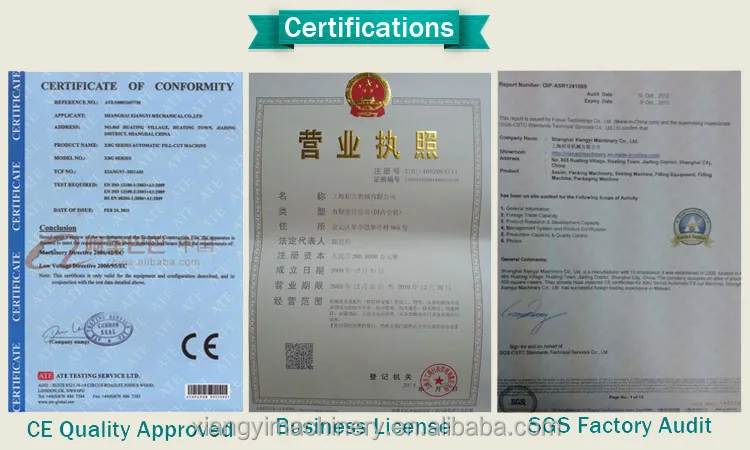

Certifications

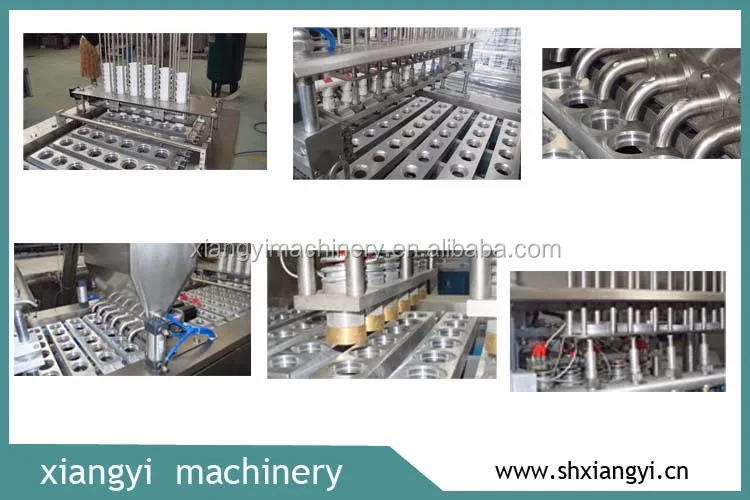

Detailed Images

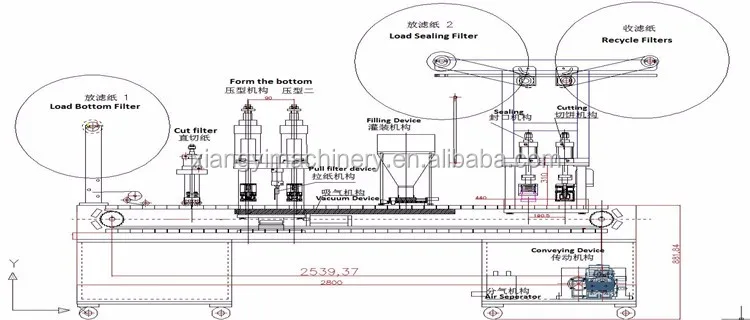

How it works

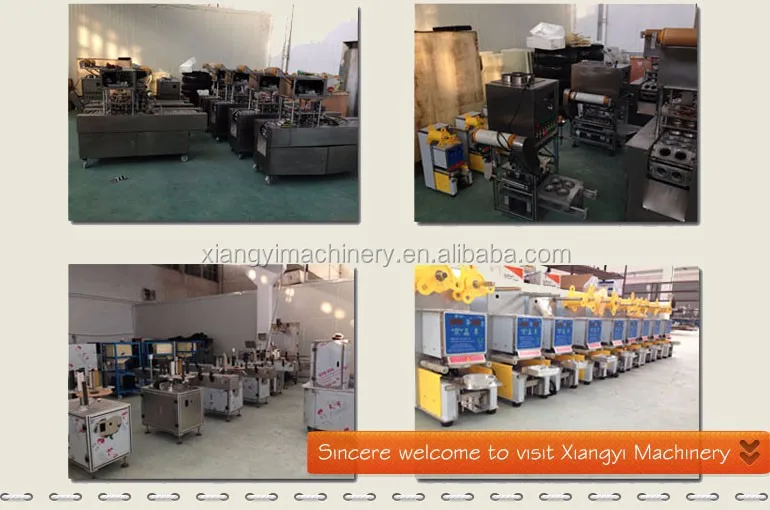

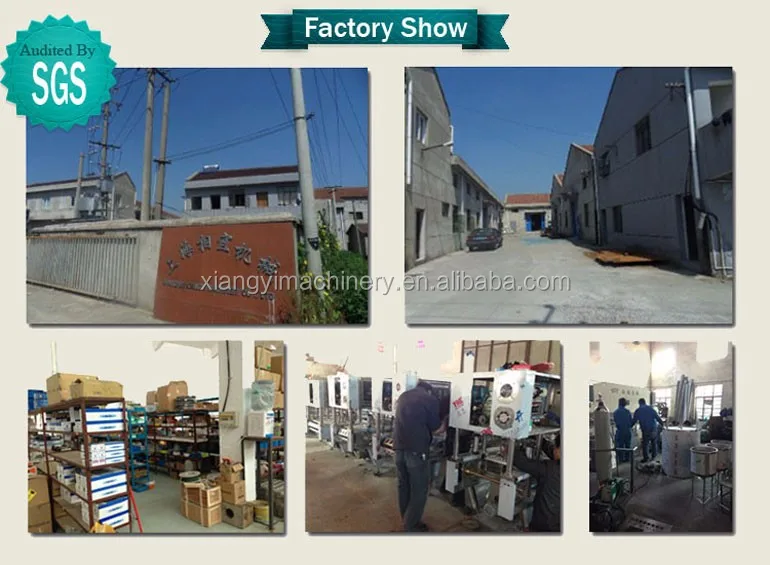

Our Factory
